Product Details:
|
| Material: | Alloy Steel | Diameter: | 1/2" |
|---|---|---|---|
| Surface: | Black Oxide | Standard: | IFI-151 |
| Grade: | 12.9 | Length: | 6-600mm |
| Product: | 1/2 Inch Diameter IFI-115 Grade 12.9 Black Finish 12 Points Flange Bolts | Sample: | All Sample Free |
| Highlight: | 1 / 2" Hex Flange Bolts,Grade 12.9 m12x1 25 flange bolt,600mm Hex Flange Bolts |
||

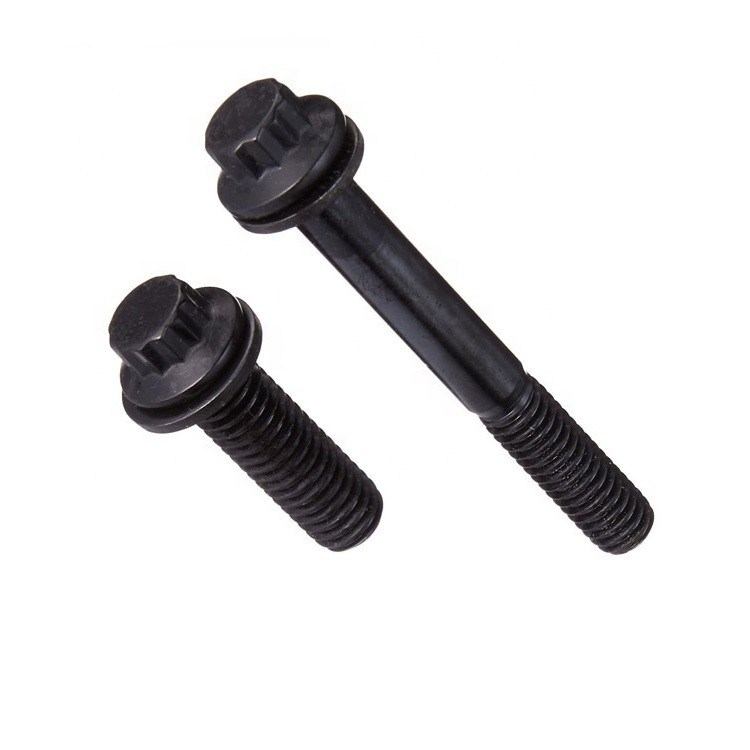

1/2 inch diameter IFI-115 grade 12.9 black finish 12 points flange bolts
Also referred to as a 12-Point Flange Head Cap Screw, or a ferry bolt, the flange diameter and head thickness of the 12-Point Bolt are equivalent to the head dimensions of a socket head cap screw, thus permitting the 12-Point Bolt to be a replacement for any application that calls for a socket head cap screw. The 12-point bolt head design means that this screw can be tightened with a 12-point socket wrench which allows higher torques to be applied as compared to a standard internal hex drive socket head cap screw. This feature, combined with the larger bearing area under the head of the flange design provides further benefits over a traditional hex head cap screw.
| Standard: IFI -115, DIN,JIS. ISO |
| Size: 1/4”-1.1/2”, M5-M36 |
| Material: Carbon Steel, Alloy Steel, Stainless Steel, Brass |
| Grade: ASTM A307Gr.A, Class 4.8, 5.8, 6.8, 8.8, 10.9, 12.9; SAE J429 Gr.2, 5,8; |
| Thread: M, UNC, UNF |
| Finish: Plain, Zinc Plated(Clear/Blue/Yellow/Black), Black oxide, Nickel, Chrome, H.D.G. |
Packaging Details: a. bulk in cartons (<=25kg )+ 36CTN/wood solid Pallet
b. bulk in cartons 9"x9"x5" (<=18kg )+ 48CTN/wood solid Pallet
Supply Ability:1000 tons per month
MinimumOrder:200kgs for each specification
Trade Term:FOB/CIF/CFR/CNF/EXW/DDU/DDP
Payment :T/T, L/C , D/A , D/P , Western Union,etc
Market:South&north Amrica/Europe/ etc.
