Product Details:
|
| Material: | A193 Grade B7 | Diameter: | 1/2" |
|---|---|---|---|
| Thread: | UNC | Thread Standard: | ASME B1.1 Class 2A |
| Finish: | Black | Length: | 40mm |
| Mark: | Manufacturer's ID And B7 | Product Name: | Black Color 4140 Steel ASTM A193 Grade B7 Heavy Hex Head Bolts |
| Highlight: | A193 B7 40mm Heavy Hex Head Bolts,ASME B1.1 40mm black hex head bolts,ASME B1.1 1/2" Heavy Hex Head Bolts |
||

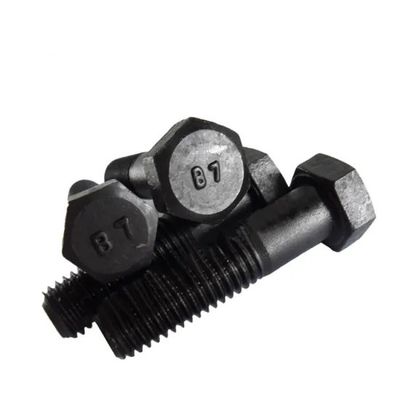

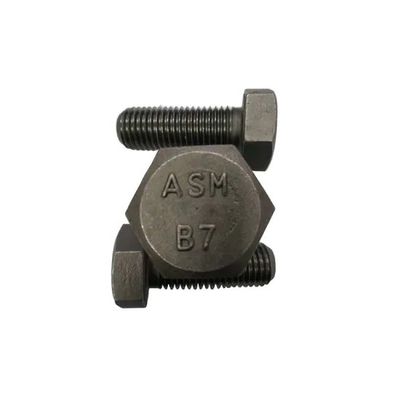

Black color 4140 steel ASTM A193 Grade B7 heavy hex head bolts
Structural fasteners are strong, heavy-duty fasteners that are necessary for the construction of structures which include steel to steel connections. In other words, they are used when one metal structure needs to be connected to another.
The typical application of structural fasteners is in bridge and building construction, where they are used to connect metal beams and girders. To be considered for structural purposes, fasteners need to be made of quenched and tempered steel with a minimal tensile strength of 120 ksi.
Some of the most commonly used structural fasteners are:
Heavy hex bolts. This type of bolt or cap screw comes with a hexagonal head, and is larger and thicker than standard hex bolts. A325 and A490 specifications are suitable in this application.
Heavy hex nuts, also known as finish nuts. Heavy hex nuts are used along with bolts - both for strength and for a thick finished look.
Flat washers. These high hardness and low-deformation plain washers, punched washers, or flat washers are used as spacers and load distributors.
Tension control bolts. TC bolts are extremely adept at handling vibrations and preventing load reversals and they eliminate slips in connections.
The quality of structural fasteners specified is of prime importance because they will be holding together heavy and crucial structures. Therefore, they must be durable, sturdy, rust-proof and corrosion-free for several years. Using poor quality structural fasteners not only reduces the durability of the overall structure but also puts lives at risk.
A193 Grade B7: Alloy steel, AISI 4140 / 4142 quenched and tempered.
A193 Grade B8, Class 1: Stainless steel, AISI 304, carbide solution treated.
A193 Grade B8, Class 2: Stainless steel, AISI 304, carbide solution treated, strain hardened.
A193 Grade B8M, Class 1: Stainless steel, AISI 316, carbide solution treated.
A193 Grade B8M, Class 2: Stainless steel, AISI 316, carbide solution treated, strain hardened.
A193 Grade B16: Alloy steel, chromium-molybdenum-vanadium, quenched and tempered.
NOTE: There are other grades of A193. Those listed here are the ones we receive the most requests for.For information on other types, please contact us.
SIZE: 1/4" - 5", M6 -M100. And 600mm Max length.
THREAD: ASME B1.1 , UNC, UNF, CLASS 2A
FINISHED: Plain, Zinc Plated(Clear/Blue/Yellow/Black), Black oxide, Nickel, Dacromet, H.D.G.
| A193 MECHANICAL PROPERTIES | |||||||
| Grade | Size | Tensile, ksi, min | Yield, ksi, min | Elong. % min | RA min | HBW, max | HRC, max |
| B7 | up to 2-1/2" | 125 | 105 | 16 | 50 | 321 | 35 |
| 2-5/8" - 4" | 115 | 95 | 16 | 50 | |||
| 4-1/8" - 7" | 100 | 75 | 18 | 50 | |||
| B8 Class 1 | all | 75 | 30 | 30 | 50 | 223 | 35 |
| B8 Class 2 | up to 3/4" | 125 | 100 | 12 | 35 | 321 | 35 |
| 7/8" - 1" | 115 | 80 | 15 | 35 | |||
| 1-1/8" - 1-1/4" | 105 | 65 | 20 | 35 | |||
| 1-3/8" - 1-1/2" | 100 | 50 | 28 | 45 | |||
| B8M Class 1 | all | 75 | 30 | 30 | 50 | 223 | 96 |
| B8M Class 2 | up to 3/4" | 110 | 95 | 15 | 45 | 321 | 35 |
| 7/8" - 1" | 100 | 80 | 20 | 45 | |||
| 1-1/8" - 1-1/4" | 95 | 65 | 25 | 45 | |||
| 1-3/8" - 1-1/2" | 90 | 50 | 30 | 45 | |||
| B16 | under 2-1/2" | 125 | 105 | 18 | 50 | 321 | 35 |
| over 2-1/2" - 4" | 110 | 95 | 17 | 45 | |||
| over 4" - 8" | 100 | 85 | 16 | 45 | |||
| A193 CHEMICAL PROPERTIES | ||||
| Element | Grade B7 | Grade B8 | Grade B8M | Grade B16 |
| Carbon | 0.37 - 0.49% | 0.08% max | 0.08% max | 0.36 - 0.47% |
| Manganese | 0.65 - 1.1% | 2.0% max | 2.0% max | 0.45 - 0.7% |
| Phosphorus, max | 0.04% | 0.05% | 0.05% | 0.04% |
| Sulfur, max | 0.04% | 0.03% | 0.03% | 0.04% |
| Silicon | 0.15 - 0.35% | 1.0% max | 1.0% max | 0.15 - 0.35% |
| Chromium | 0.75 - 1.2% | 18.0 - 20.0% | 16.0 - 18.0% | 0.8 - 1.15% |
| Nickel | 8.0 - 11.0% | 10.0 - 14.0% | ||
| Molybdenum | 0.15 - 0.25% | 2.0 - 3.0% | 0.5 - 0.65% | |
| Vanadium | 0.25 - 0.35% | |||
| Aluminum, max | 0.02% | |||
| A193 RECOMMENDED HARDWARE | ||
| Grade | Nut | Washer |
| B7 | A194 Grade 2H | F436 |
| B8 Class 1 | A194 Grade 8 | 304 Stainless |
| B8 Class 2 | A194 Grade 8 | 304 Stainless |
| B8M Class 1 | A194 Grade 8M | 316 Stainless |
| B8M Class 2 | A194 Grade 8M | 316 Stainless |
| B16 | A194 Grade 7 | F436 |
