Product Details:
|
| Standard: | DIN125A | Size: | M6 |
|---|---|---|---|
| Surface: | Zinc Plated ( Clear/Blue/Yellow/Black ) | Mark: | Manufacturer's ID |
| Sample: | 5pcs Sample Free | Hardness: | 200HV |
| Type: | Round | Product Name: | Q235 Carbon Steel 200HV Zinc Plated M6 Round DIN125A Flat Washer |
| Highlight: | Q235 Flat Spring Washers,M6 Q235 flat lock washer,200HV Q235 Flat Spring Washers |
||

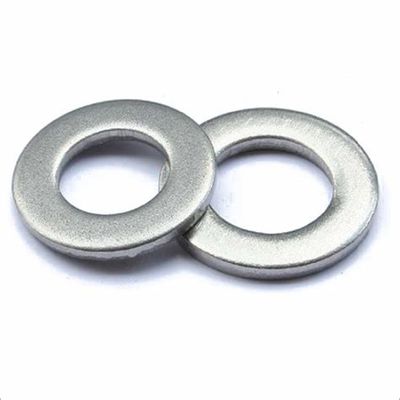

Q235 Carbon steel 200HV zinc plated M6 round DIN125A Flat washer
Flat washers protect surfaces by evenly distributing torque when a bolt or screw is tightened. They prevent corrosion between a steel screw and an aluminum surface. A nylon washer can be placed under a machine screw to reduce noise and abrasion and offer electrical insulation. Sealing washers are used for plumbing and hydraulic projects.
SIZE: 1/4" - 4", M6 -M100 .
STANDARD: ASME/ANSI ,DIN125A,ISO 7089 , Customized.
FINISHED: Plain, Zinc Plated(Clear/Blue/Yellow/Black), Black oxide, Nickel, Chrome, H.D.G.
Packaging Details: a. bulk in cartons (<=25kg )+ 36CTN/wood solid Pallet
b. bulk in cartons 9"x9"x5" (<=18kg )+ 48CTN/wood solid Pallet
Supply Ability:1000 tons per month
MinimumOrder:200kgs for each specification
Trade Term:FOB/CIF/CFR/CNF/EXW/DDU/DDP
Payment :T/T, L/C , D/A , D/P , Western Union,etc
Market:South&north Amrica/Europe/ etc.
| For thread | d1 min. | d1 max. | d2 min. | d2 max. | h min. | h max. | weight kg/1000pcs |
| M5 | 5,3 | 5,48 | 9,64 | 10 | 0,9 | 1,1 | 0,443 |
| M6 | 6,4 | 6,62 | 11,57 | 12 | 1,4 | 1,8 | 1,02 |
| M7 | 7,4 | 7,62 | 13,57 | 14 | 1,4 | 1,8 | 1,39 |
| M8 | 8,4 | 8,62 | 15,57 | 16 | 1,4 | 1,8 | 1,83 |
| M10 | 10,5 | 10,77 | 19,48 | 20 | 1,8 | 2,2 | 3,57 |
| M12 | 13 | 13,27 | 23,48 | 24 | 2,3 | 2,7 | 6,27 |
| M14 | 15 | 15,27 | 27,48 | 28 | 2,3 | 2,7 | 8,62 |
| M16 | 17 | 17,27 | 29,48 | 30 | 2,7 | 3,3 | 11,3 |
| M18 | 19 | 19,33 | 33,38 | 34 | 2,7 | 3,3 | 14,7 |
| M20 | 21 | 21,33 | 36,38 | 37 | 2,7 | 3,3 | 17,2 |
| M22 | 23 | 23,33 | 38,38 | 39 | 2,7 | 3,3 | 18,3 |
| M24 | 25 | 25,33 | 43,38 | 44 | 3,7 | 4,3 | 32,3 |
| M26 | 27 | 27,33 | 49,38 | 50 | 3,7 | 4,3 | 43,7 |
| M27 | 28 | 28,33 | 49,38 | 50 | 3,7 | 4,3 | 42,3 |
| M28 | 29 | 29,33 | 49,38 | 50 | 3,7 | 4,3 | 40,9 |
| M30 | 31 | 31,39 | 55,26 | 56 | 3,7 | 4,3 | 53,6 |
| M32 | 33 | 33,62 | 58,8 | 60 | 4,4 | 5,6 | 77,4 |
| M33 | 34 | 34,62 | 58,8 | 60 | 4,4 | 5,6 | 75,3 |
| M35 | 36 | 36,62 | 64,8 | 66 | 4,4 | 5,6 | 94,3 |
| M36 | 37 | 37,62 | 64,8 | 66 | 4,4 | 5,6 | 92,1 |
